Zoom

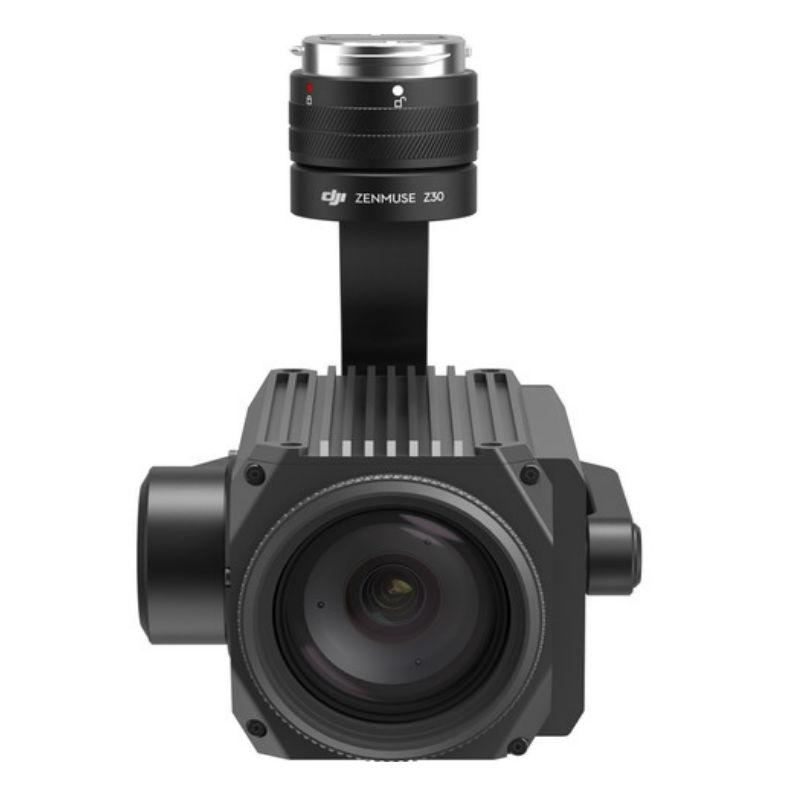

The Zenmuse Z30 is the most powerful integrated aerial zoom camera on the market with 30x optical and 6x digital zoom for a total magnification up to 180x. Whether you are inspecting cell towers or wind turbines, it enables you to get a detailed look at structures, wires, modules and components to detect damage.
TapZoom
With TapZoom, precise collection of visual data is as easy as tapping your finger to point the camera at the subject of your inspection. The Zenmuse Z30 automatically adjusts its focal length to give you an enlarged view, making the most minute of details visible in just seconds.
Stabilization
A high-powered zoom means that any movement in the system is magnified, so stability is of utmost importance. The Z30 incorporates DJI’s leading gimbal technology for stabilization within 0.01° and the same precision for controls. This enables long-range inspection that is always high in fidelity.
Cell Tower Inspection
Safer and quicker cell tower inspections with the Zenmuse Z30. Eliminate the need for dangerous manual inspection and the risk of crashing into assets by inspecting from a distance. Stream your footage to a central hub to reduce boots on the ground and ensure no extra trips are needed.
Wind Turbine Inspection
Detect fine damages from afar while avoiding damage to personnel and equipment. Set up your aircraft to circle your object of inspection with Point of Interest for a full 360° view of your asset.
Firefighting
First responders can now quickly get an overview of a scene, and use the 30x zoom to drill down for accurate and specific intelligence to base their operations on.
Compatible With Matrice
Adapting the Z30 to your existing Matrice-based aerial system is easy thanks to its integrated design. Simply slide the camera in the mount and you’re ready for take-off.
The Zenmuse Z30 is designed for use with DJI Lightbridge 2, breaking technical limits to increase range up to 3.1 miles (5km). The integrated controller and intelligent algorithms set a new standard for wireless HD image transmission by lowering latency and increasing image fidelity.
The DJI Zenmuse Z30 -30x Zoom Camera & Gimbal can collect precise visual data from over 100 meters. The Z30 camera can operate well beyond the range of cell tower.
| Brand | DJI | Model | Zenmuse Z30 |
|---|---|---|---|
| Colour | Black | Dimensions | 152×137×61 mm |
| Weight | 556 g | Sensor | CMOS, 1/2.8" |
| FOV | 63.7°(Wide) - 2.3°(Tele) | Digital Zoom | 6x |
| Min. Working Distance | 10 mm - 1200 mm | Photo Formats | JPEG |
| Video Formats | MOV, MP4 | Working Modes | Capture, Record, Playback |
| Still Photography Modes | Single shot, Burst shooting: 3/5 frames, Interval (2/3/4/7/10/15/20/30 sec | Exposure Mode | Exposure Mode Auto, Manual, Shutter priority, Aperture priority |
| Exposure Compensation | ±2.3 (1/3 increments) | Metering Mode | Center-weighted metering, Spot metering (Area option 12x8) |
| AE Lock | Supported | Electronic Shutter Speed | 1/30 – 1/6000 s |
| White Balance | Auto, Sunny, Cloudy, Incandescent, Custom (2000K - 10000K) | Video Captions | Supported |
| TapZoom | Supported | TapZoom Range | 1-5 |
| Anti-flicker | 50 Hz, 60 Hz | Supported SD Cards | MicroSD (SD / SDHC / SDXC) Max. Capacity: 64 GB, Class 10 or UHS-1 |
| Supported File Systems | FAT32 (≤ 32 GB) exFAT (> 32 GB) |
Angular Vibration Range | ±0.01° |
| Mount | Detachable | Controllable Range | Pitch : +40° to -90°, Yaw: ±320° |
| Mechanical Range | Pitch ‘: +50° to -140°, Yaw: ±330°, Roll: +90° to -50° | Max Controllable Speed | Pitch ‘: 180°/s, Yaw: 180°/s |
| Operating Temperature | 14° to 113° F (-10° to 45° C) | Non-Operating Temperature | -4° to 140° F (-20° to 60° C)s |
